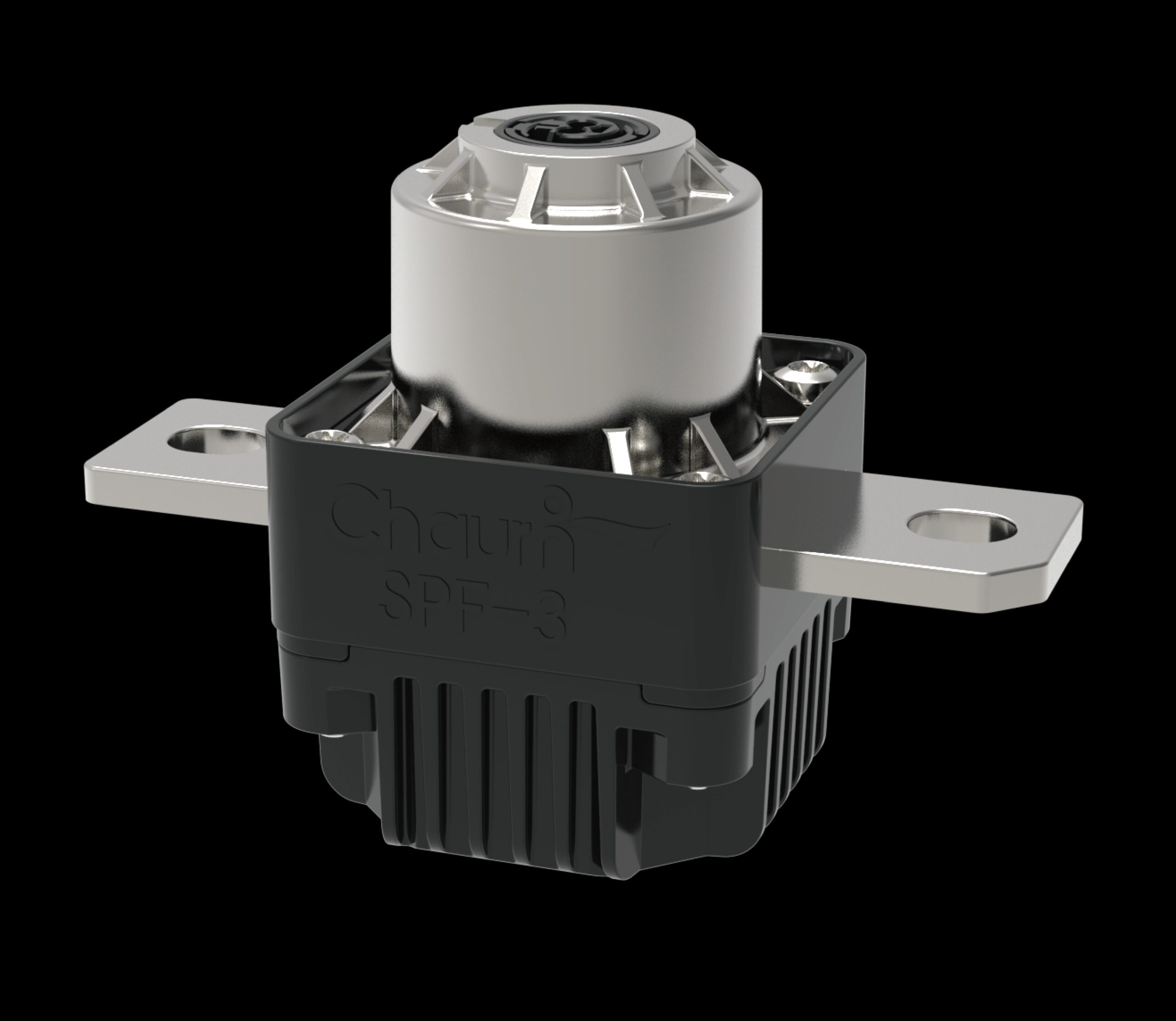

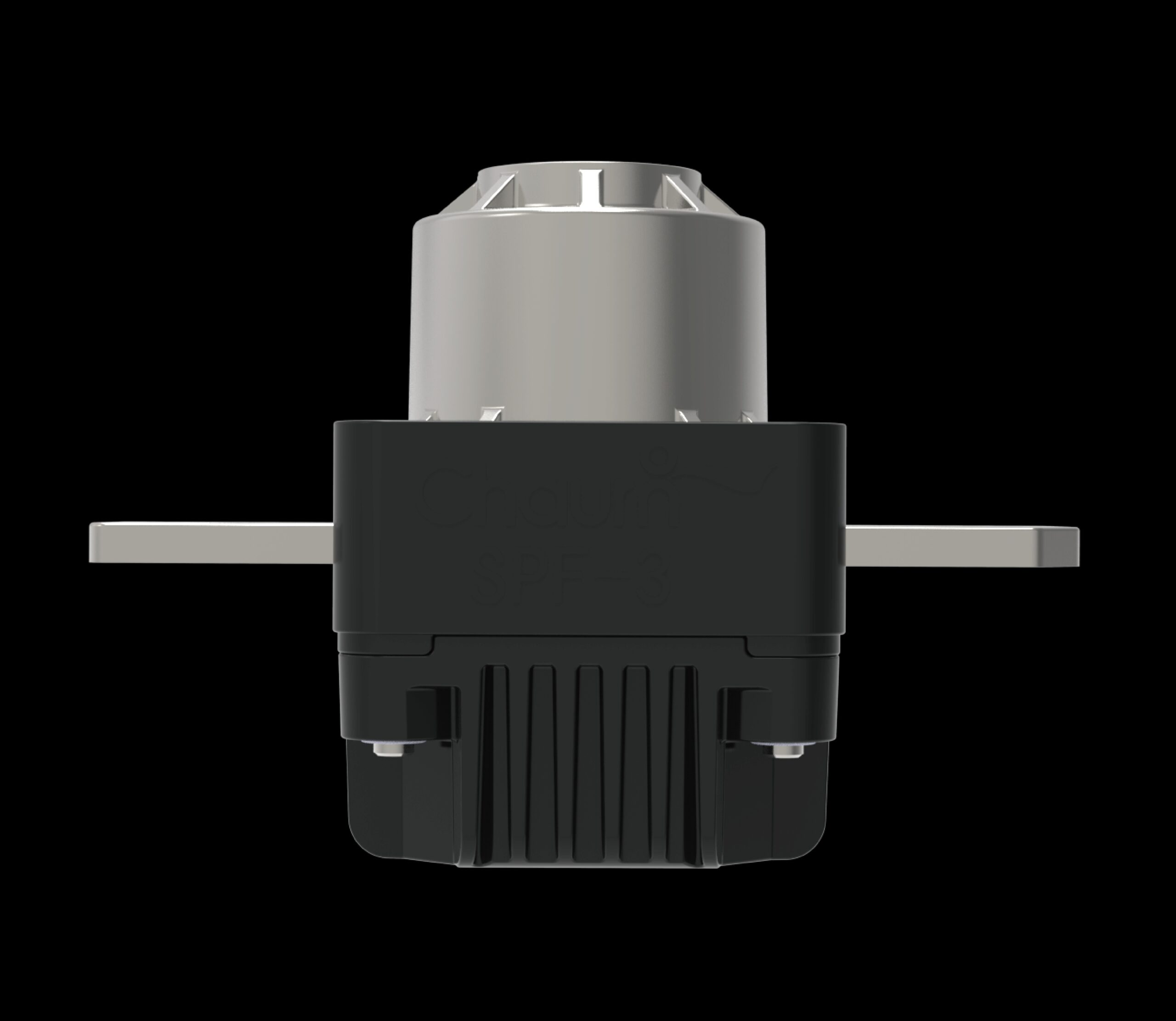

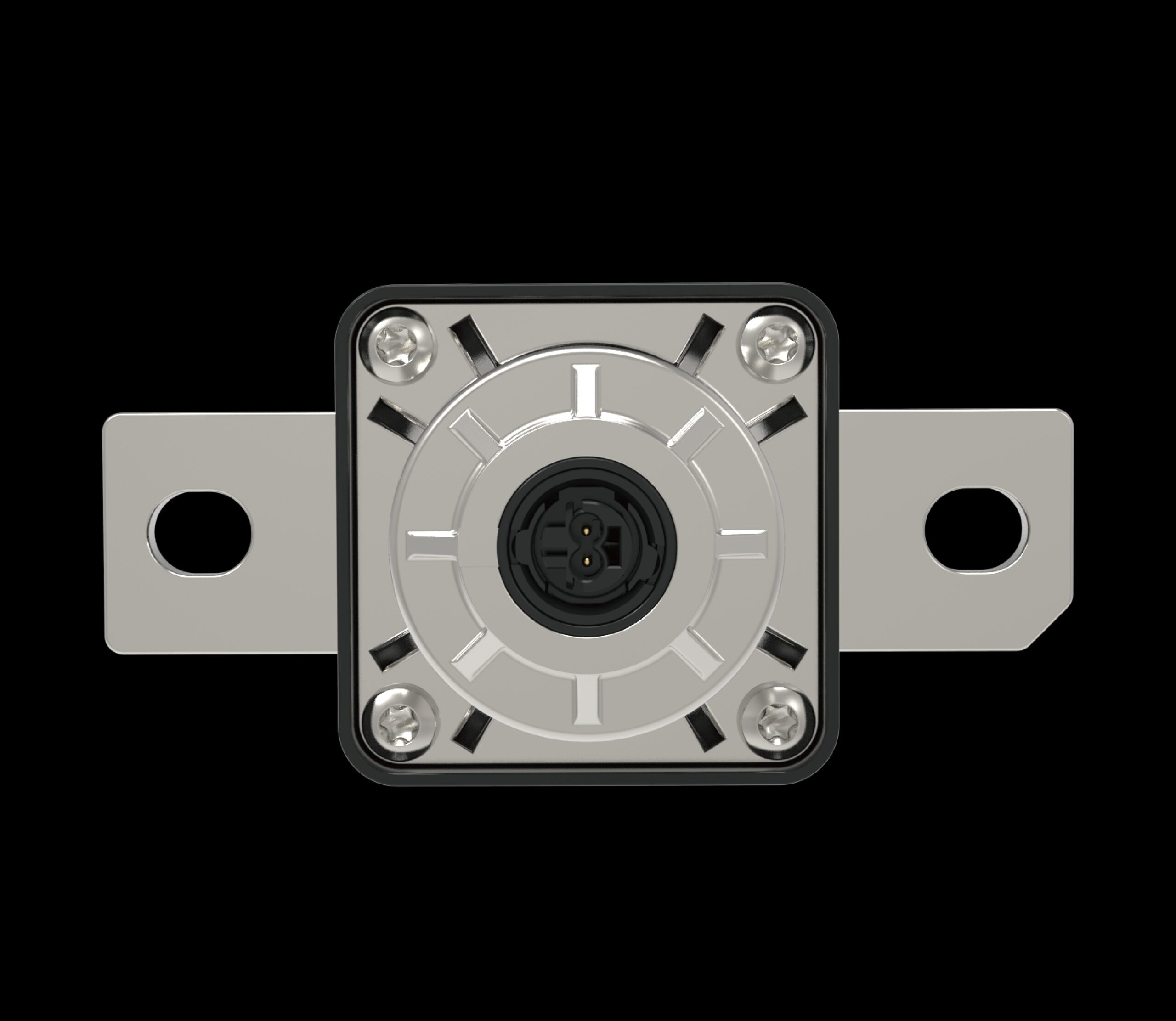

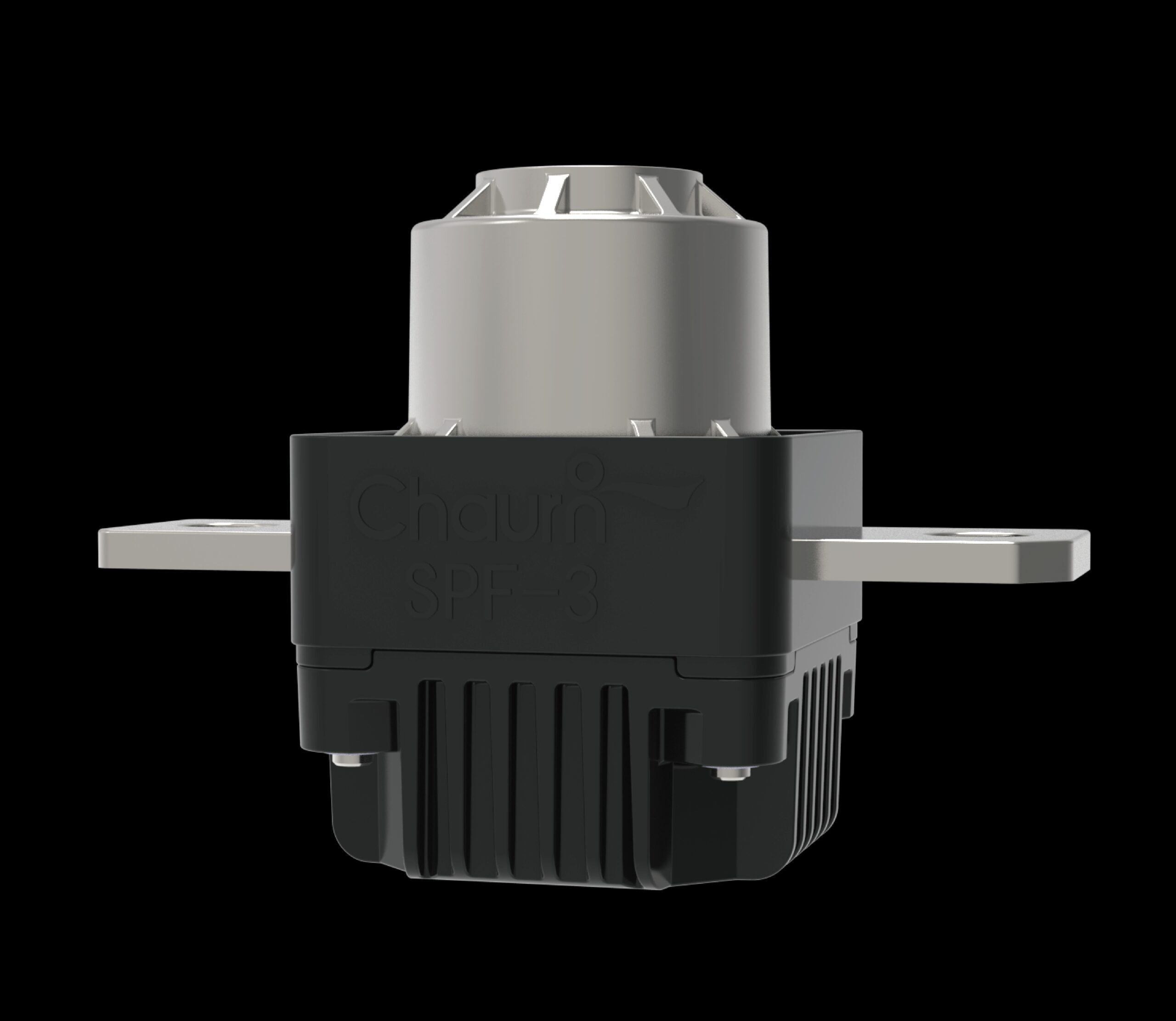

Pyrofuse SPF-3
Key Specifications
- Rated voltage: DC1000V
- Rated current: 400A
- Breaking capacity: 1000V/16kA/20μH
- Product size: 100 x 50 x 70mm
- Applications: Evs, charging piles, energy storage systems, and high-flow DC power supply equipment

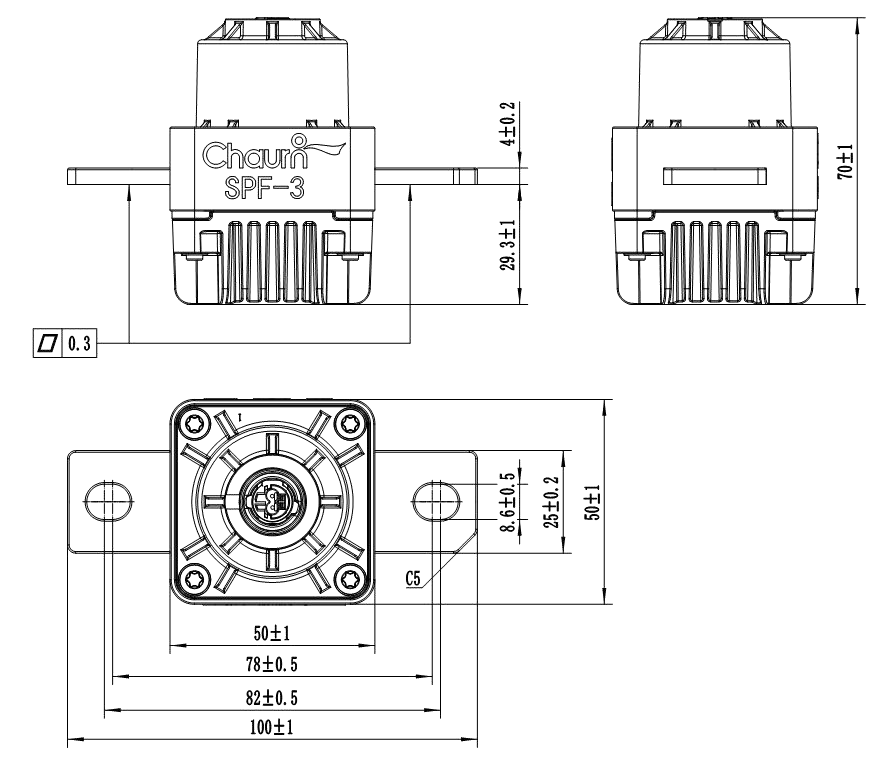

Dimensions (mm)
The Test Waveform (1000V/16.2kA/21μH)
