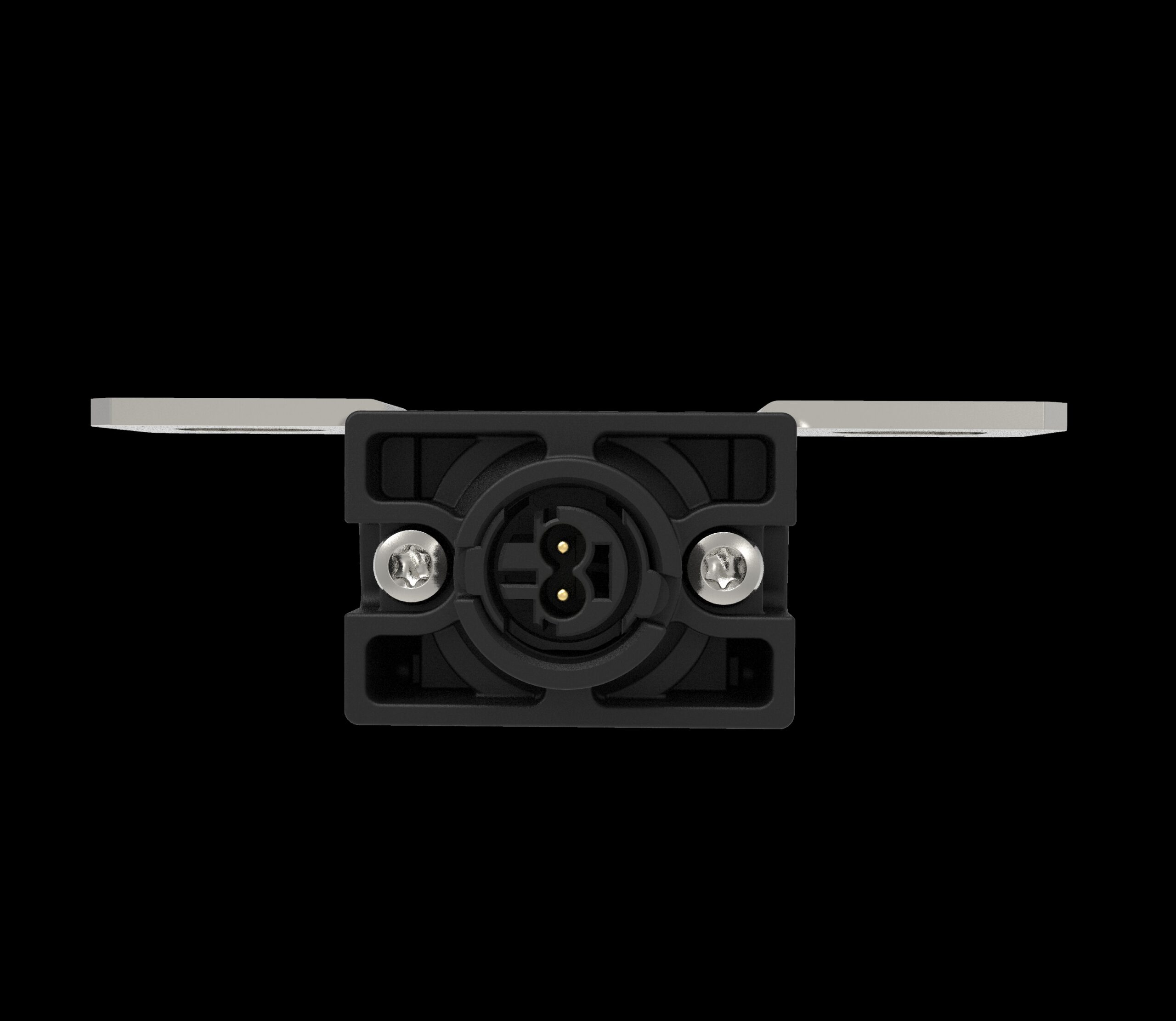

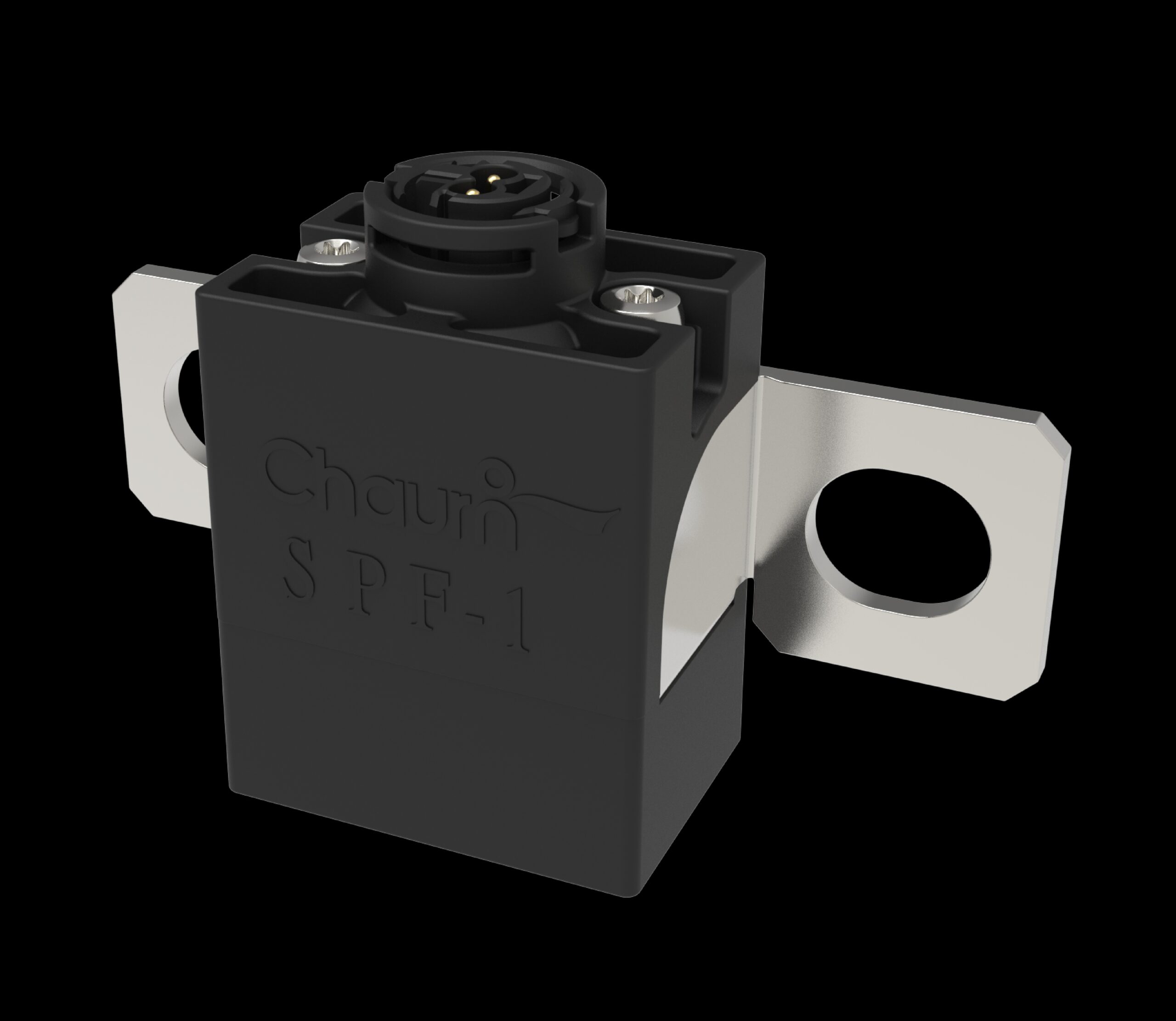

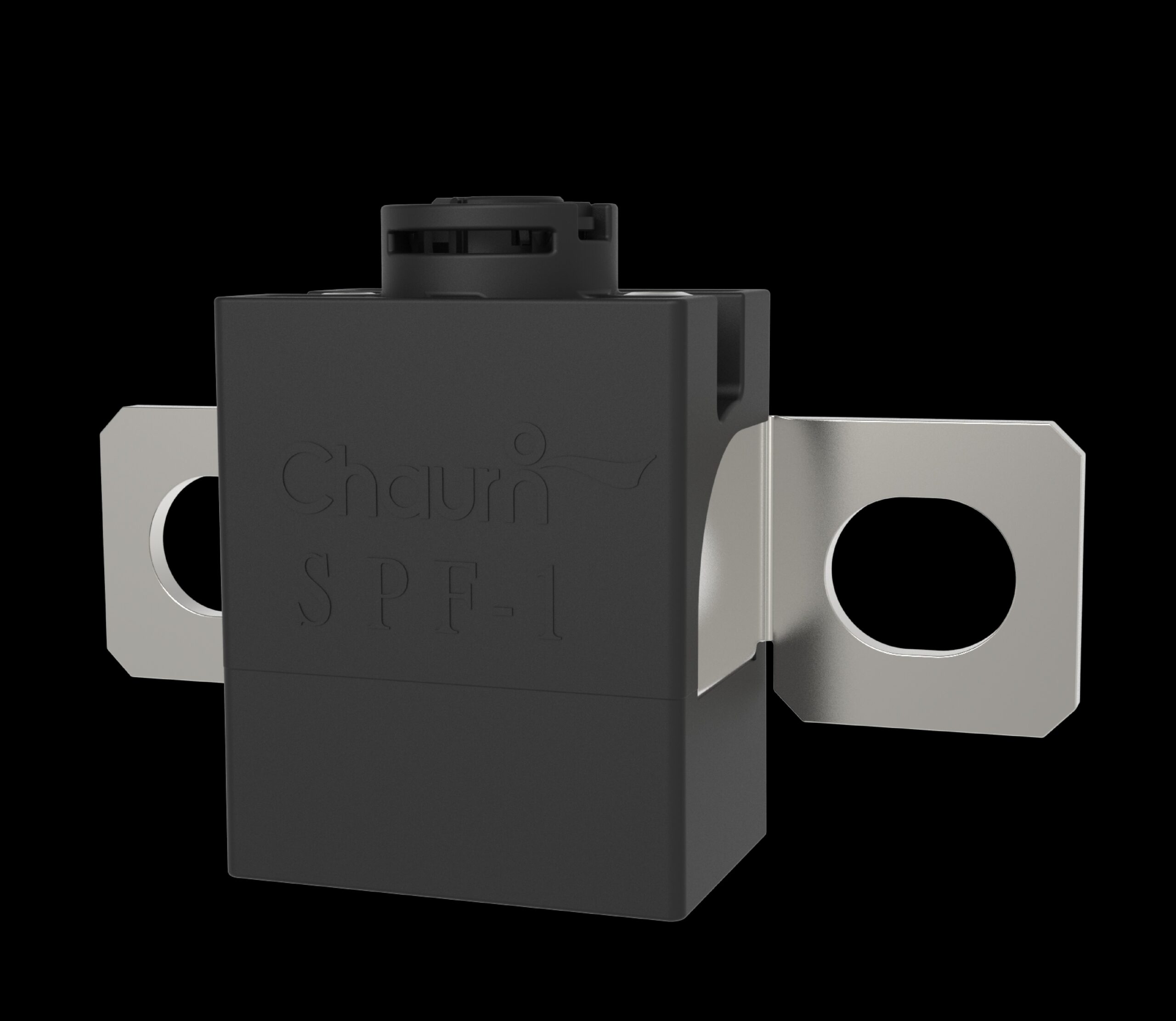

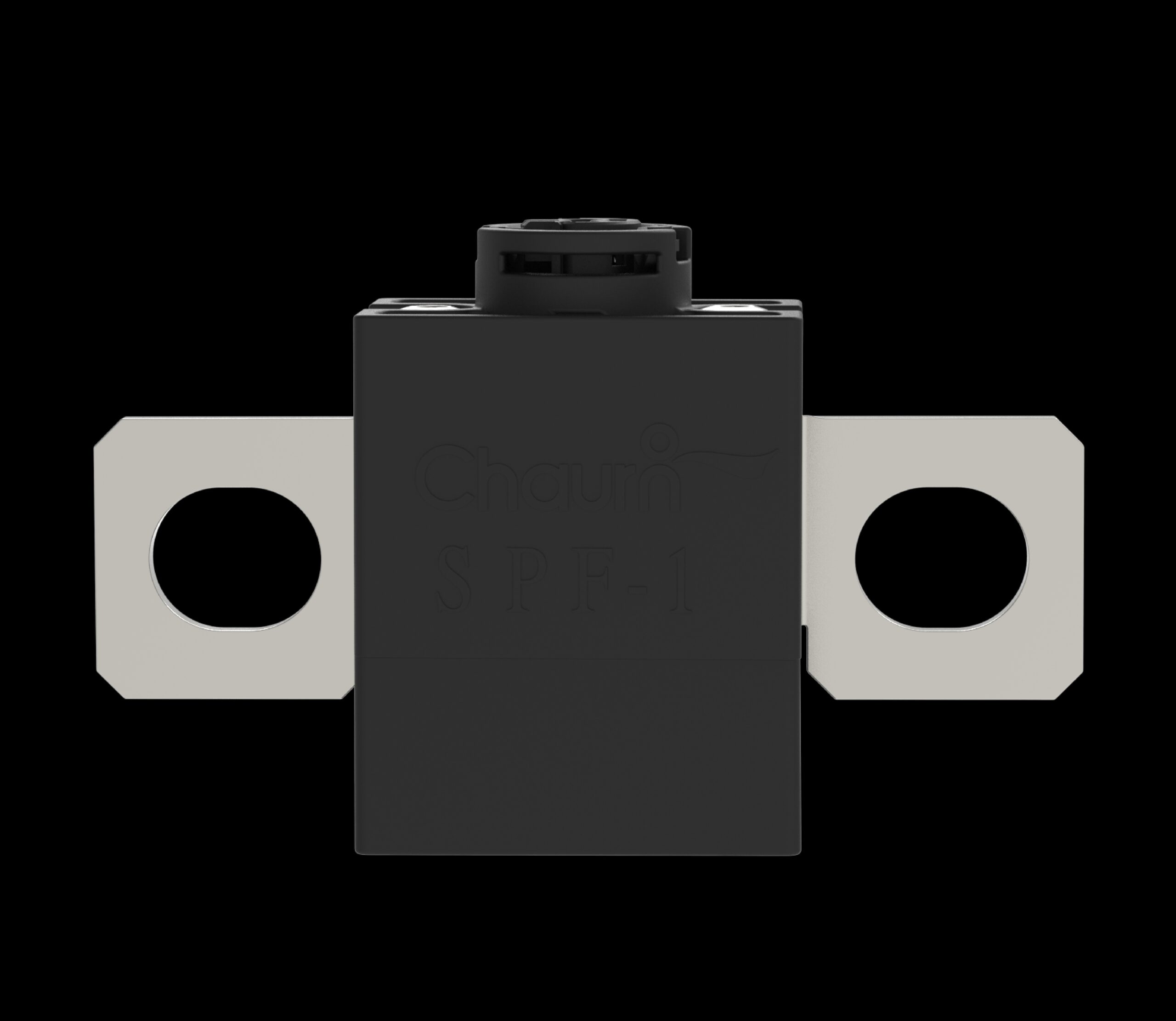

Pyrofuse SPF-1
Key Specifications
- Rated voltage: DC150V
- Rated current: 300A
- Breaking capacity: 32V/2kA/60μH, 150V/1.2kA/60μH
- Product size: 70 x 22 x 42.3mm
- Applications: Evs, charging piles, energy storage systems, and high-flow DC power supply equipment

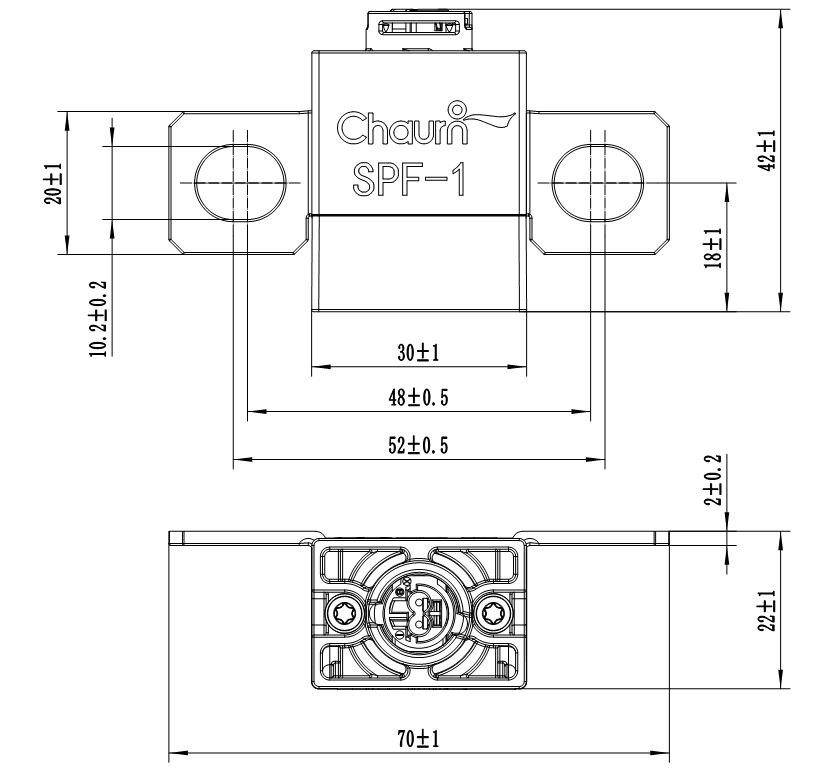

Dimensions (mm)

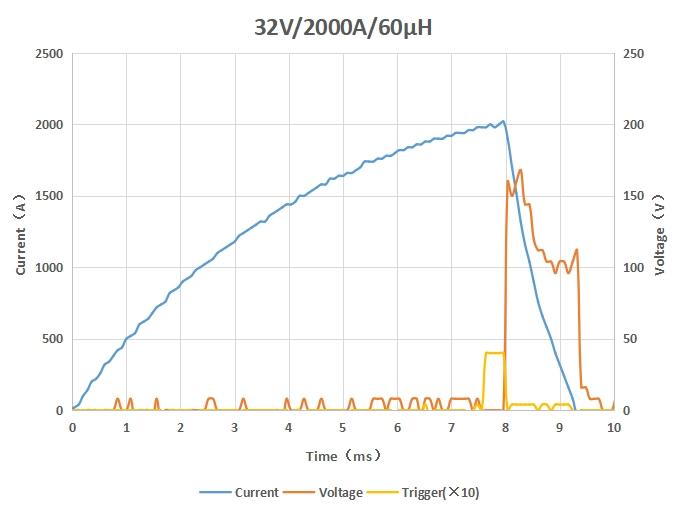

The Test Waveform (32V/2kA/60μH)
