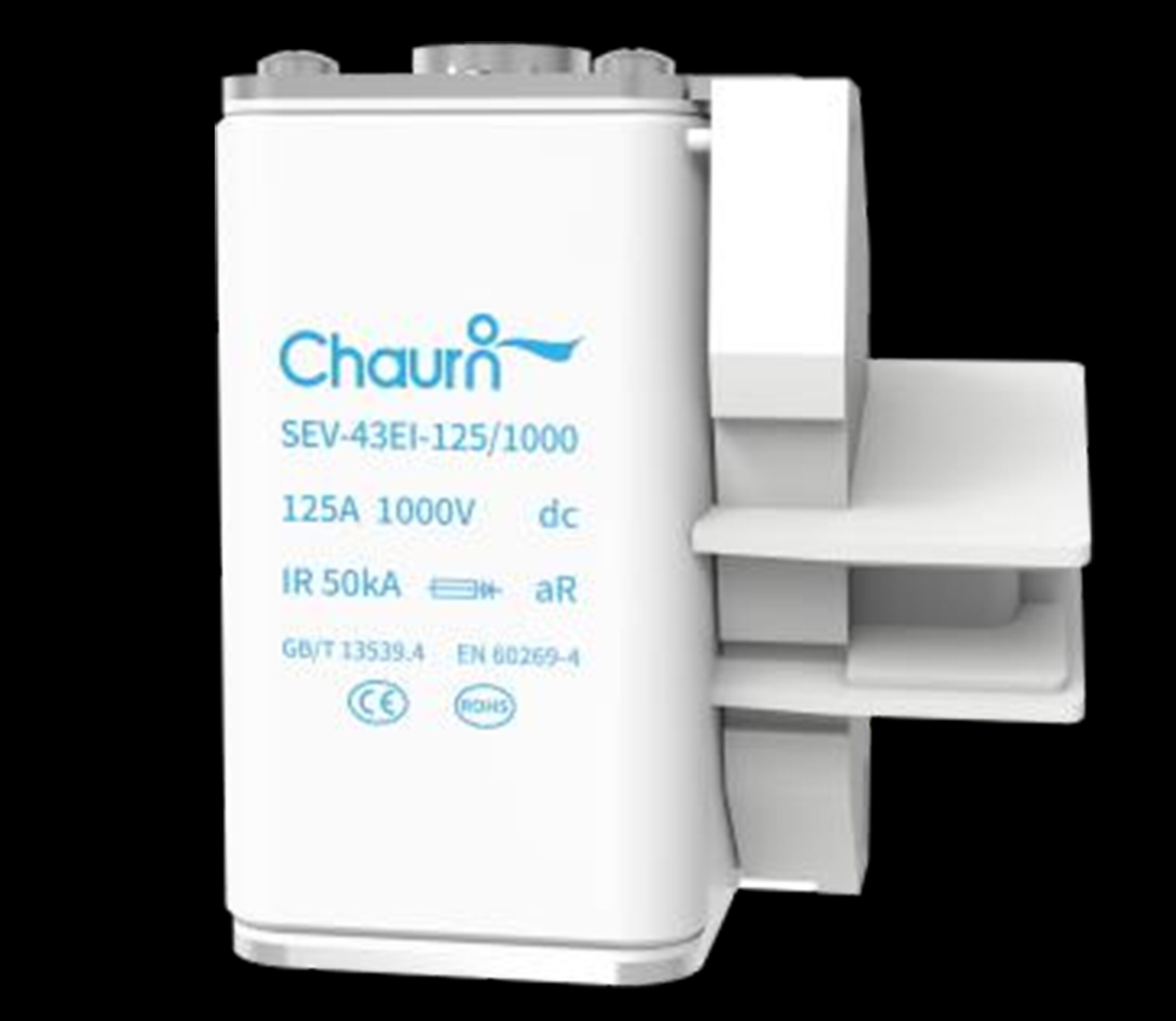

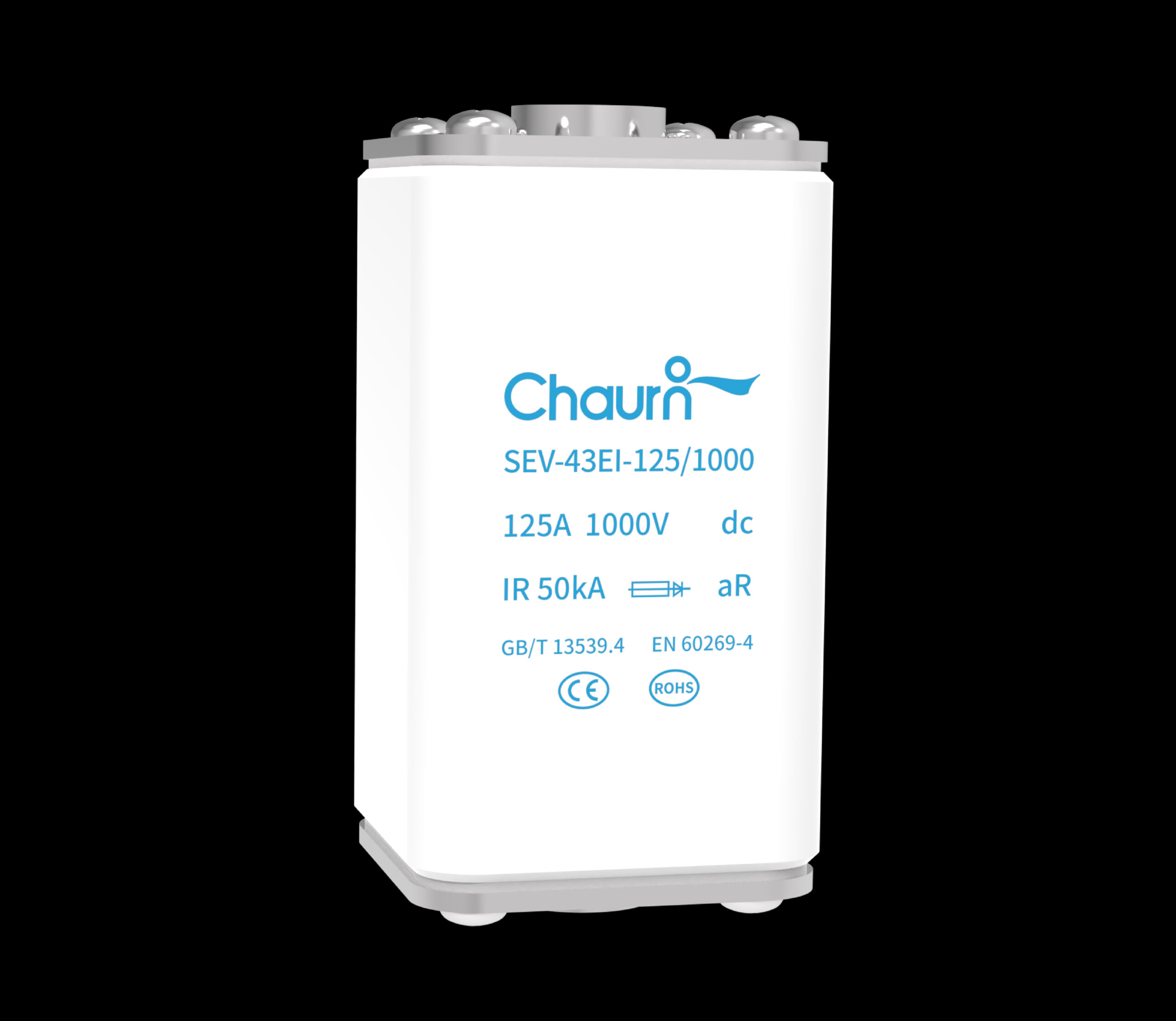

SEV-43EI

Basic parameters

  • Rated voltage: DC750-1000V
  • Rated current: 100-630A
  • Breaking capacity: 50kA (L/R ≤ 10ms)
  • Standards: GB/T13539 and IEC60269
In compliance with:
ROHS
CCC
CE

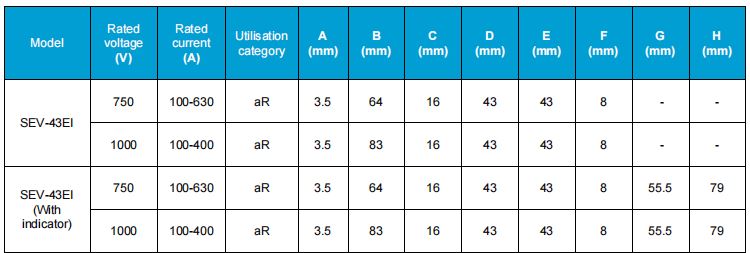

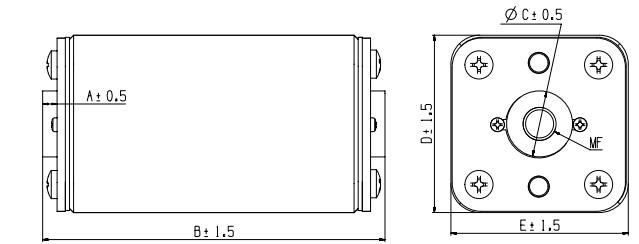

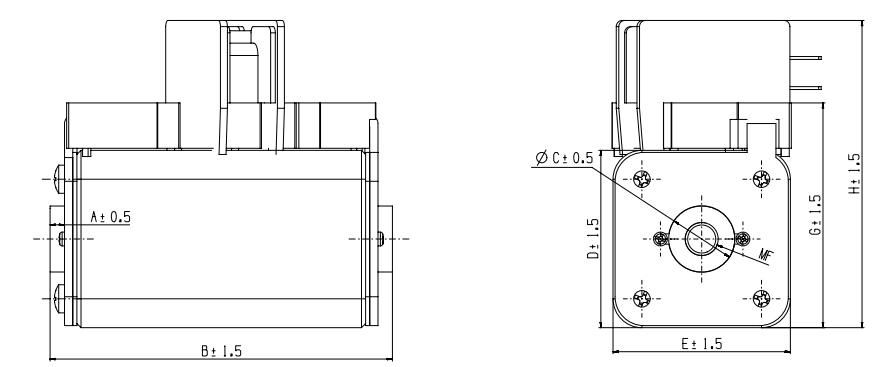

Overall dimensions
