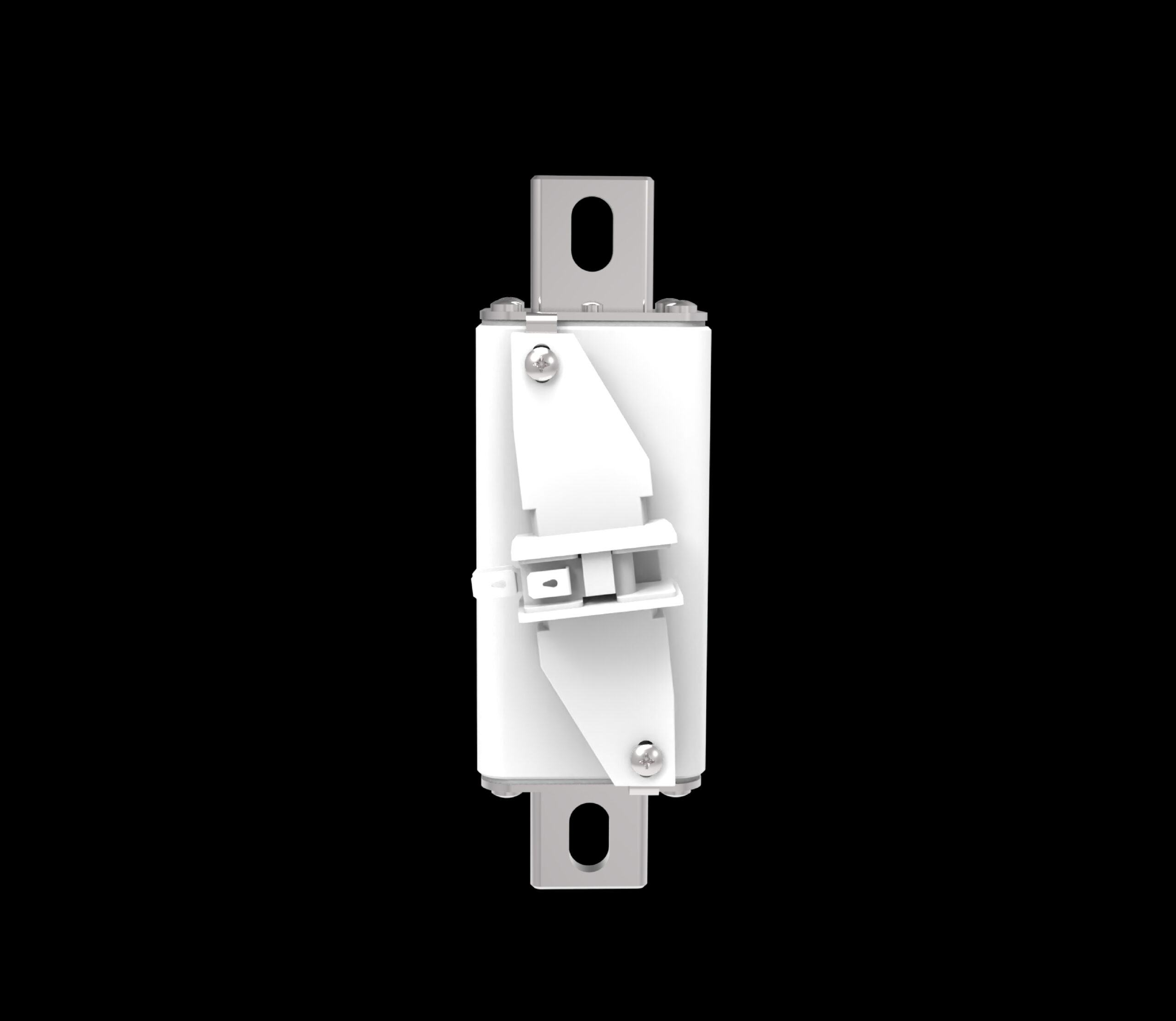

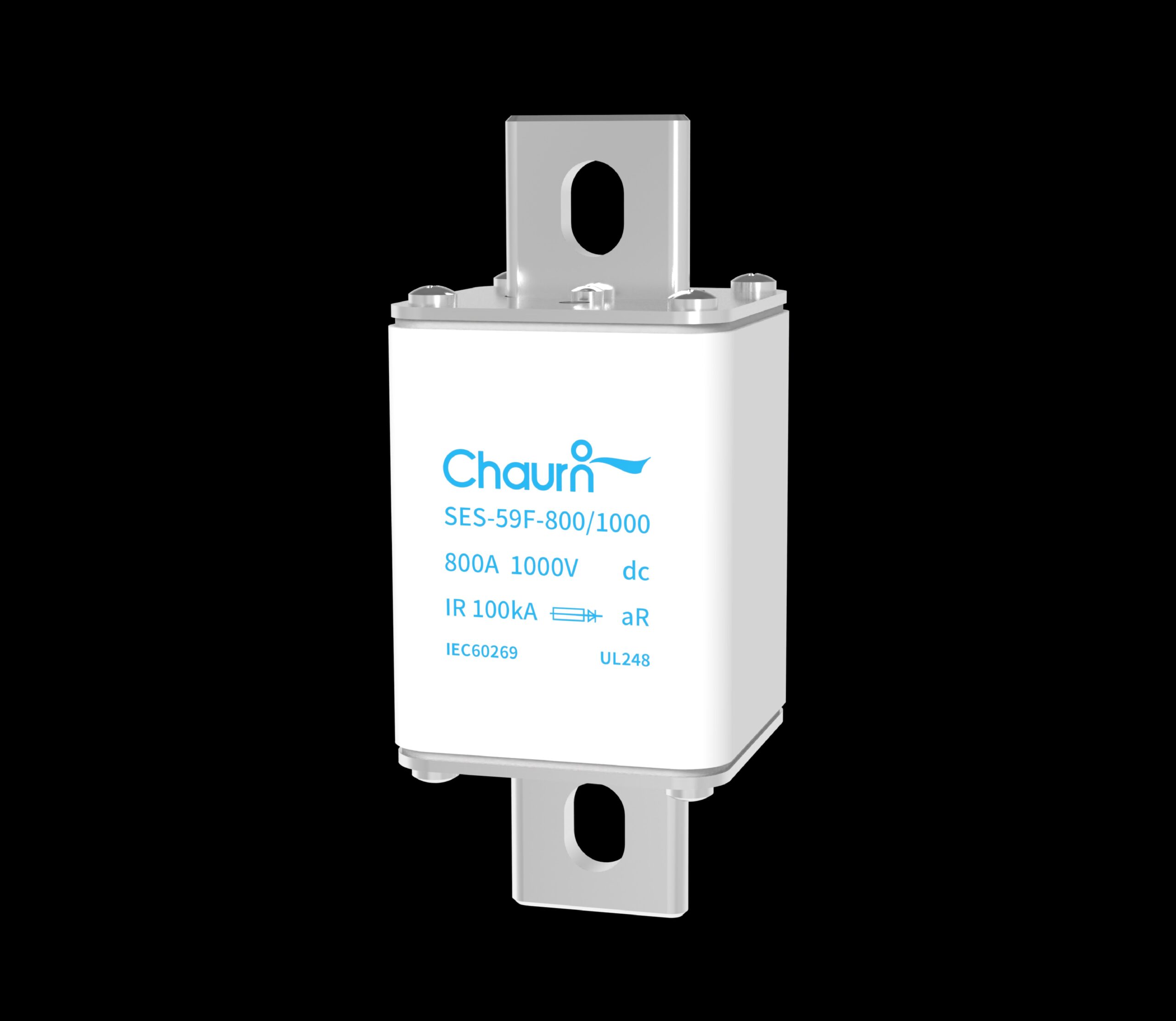

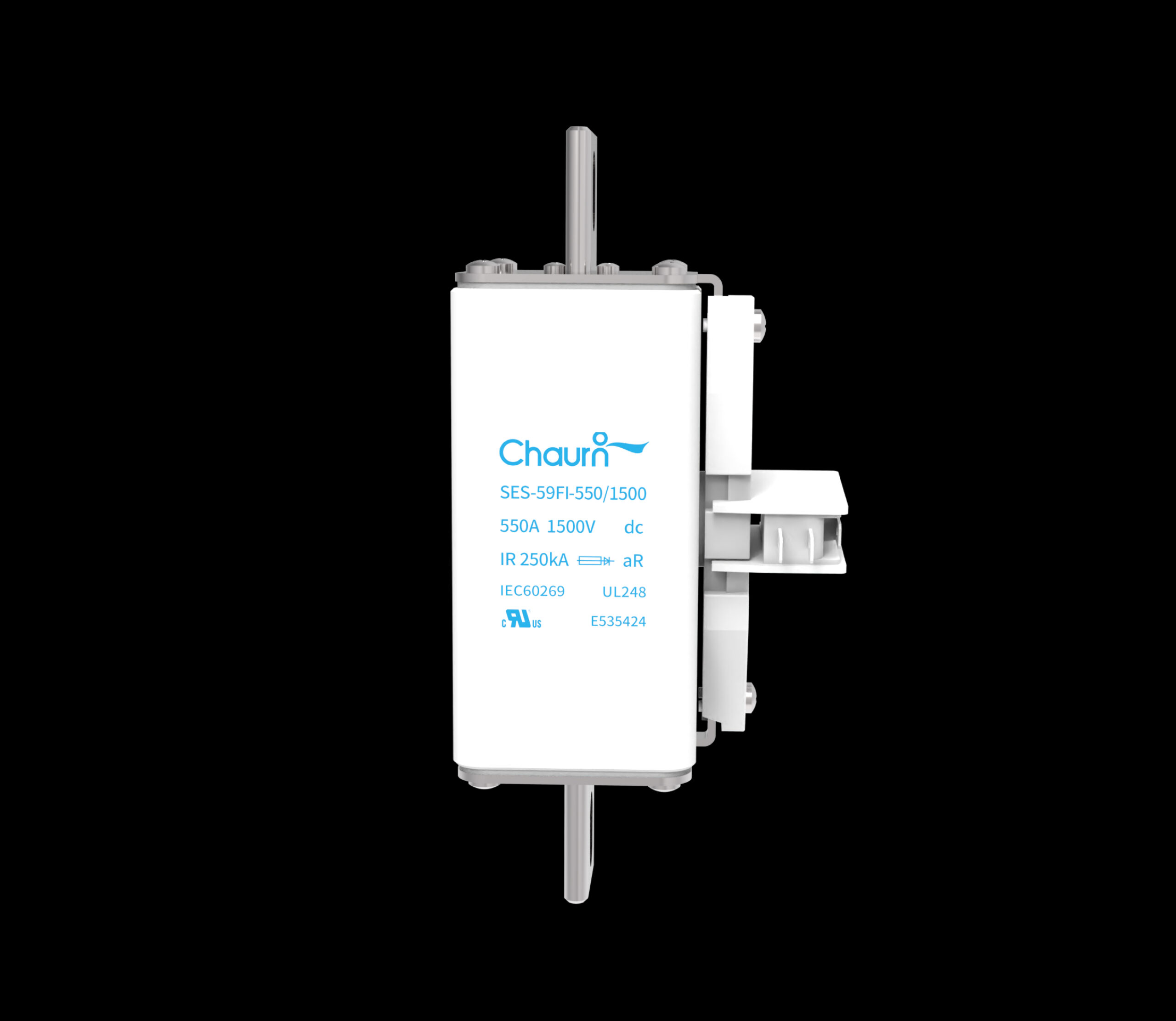

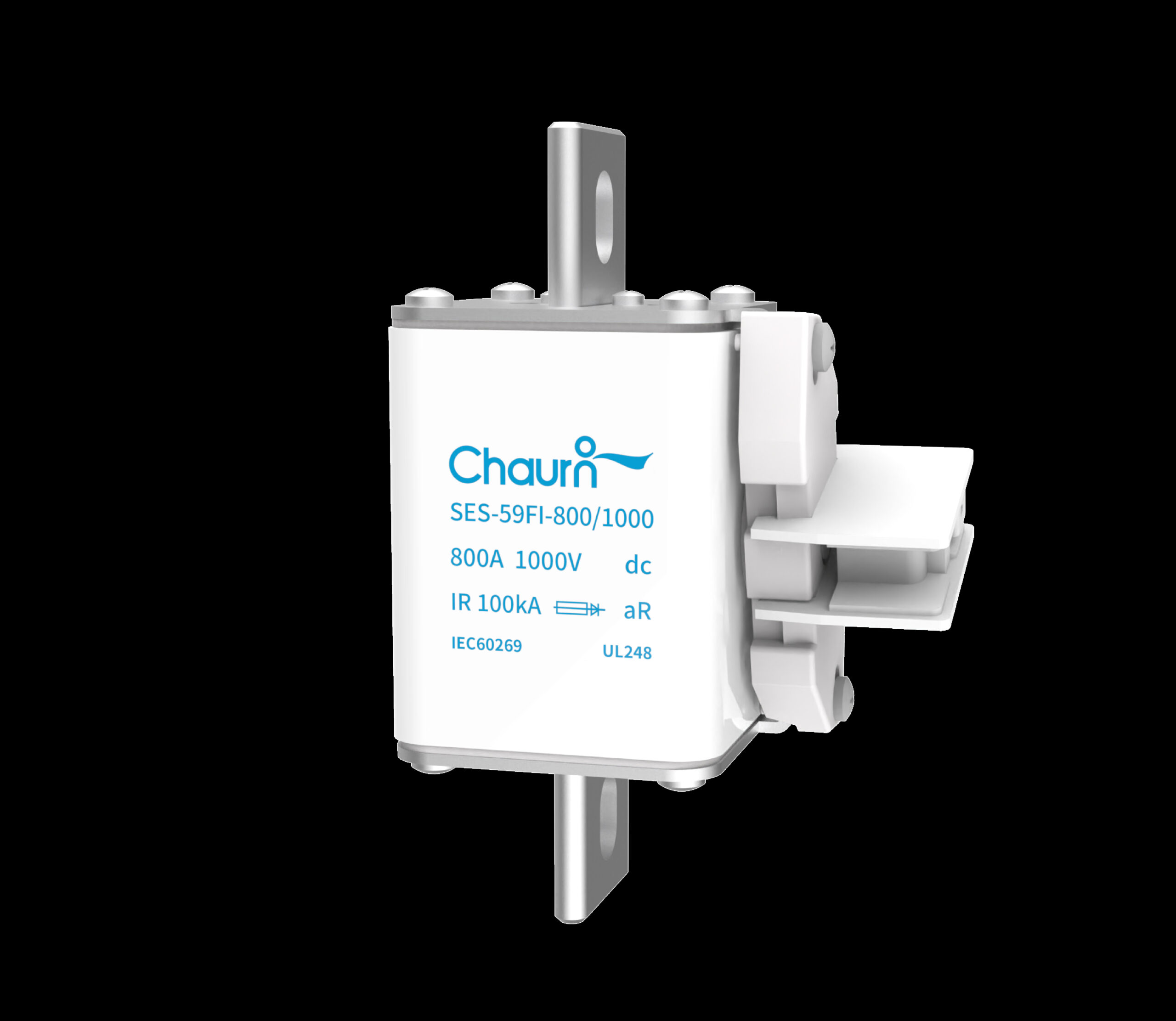

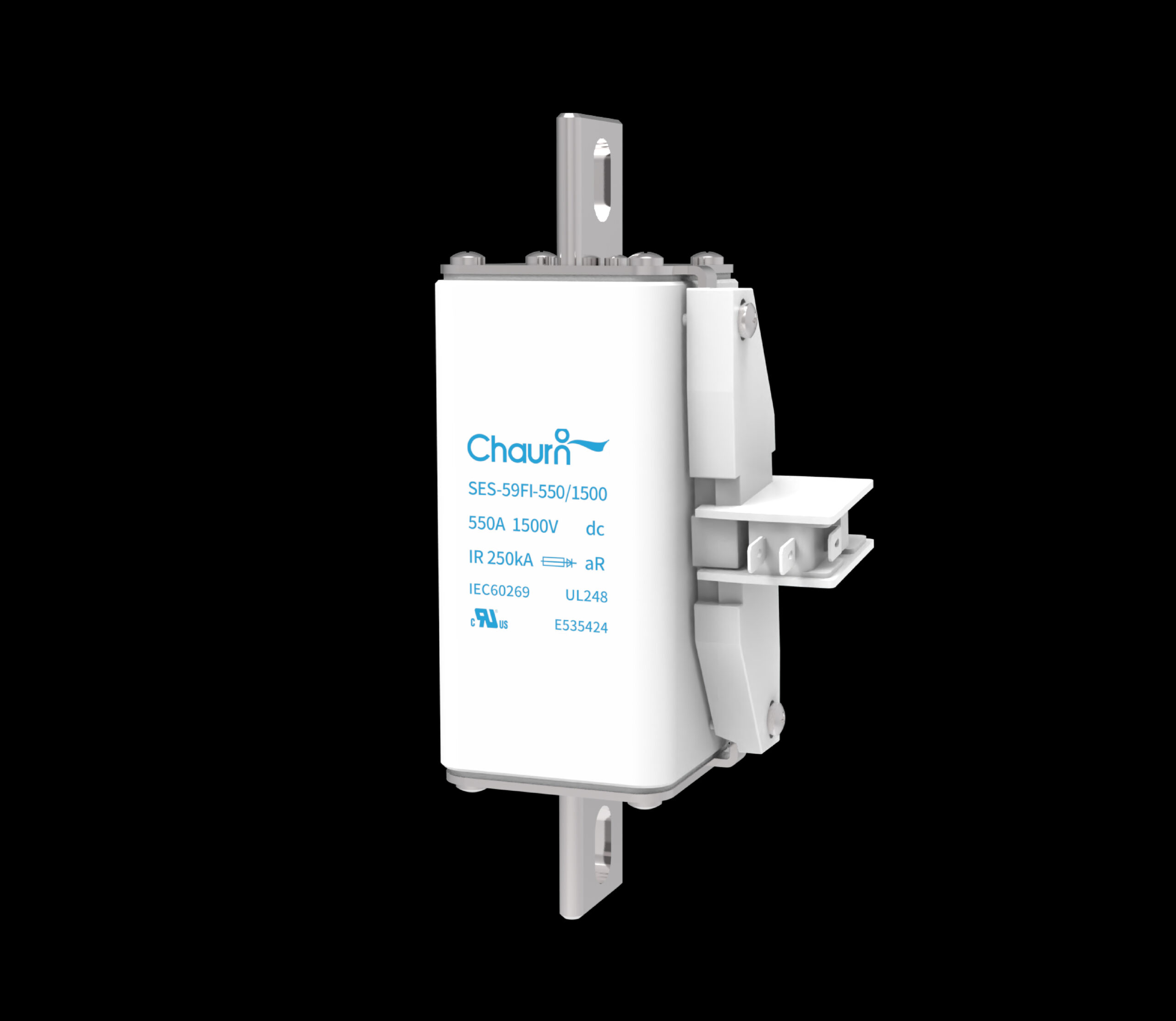

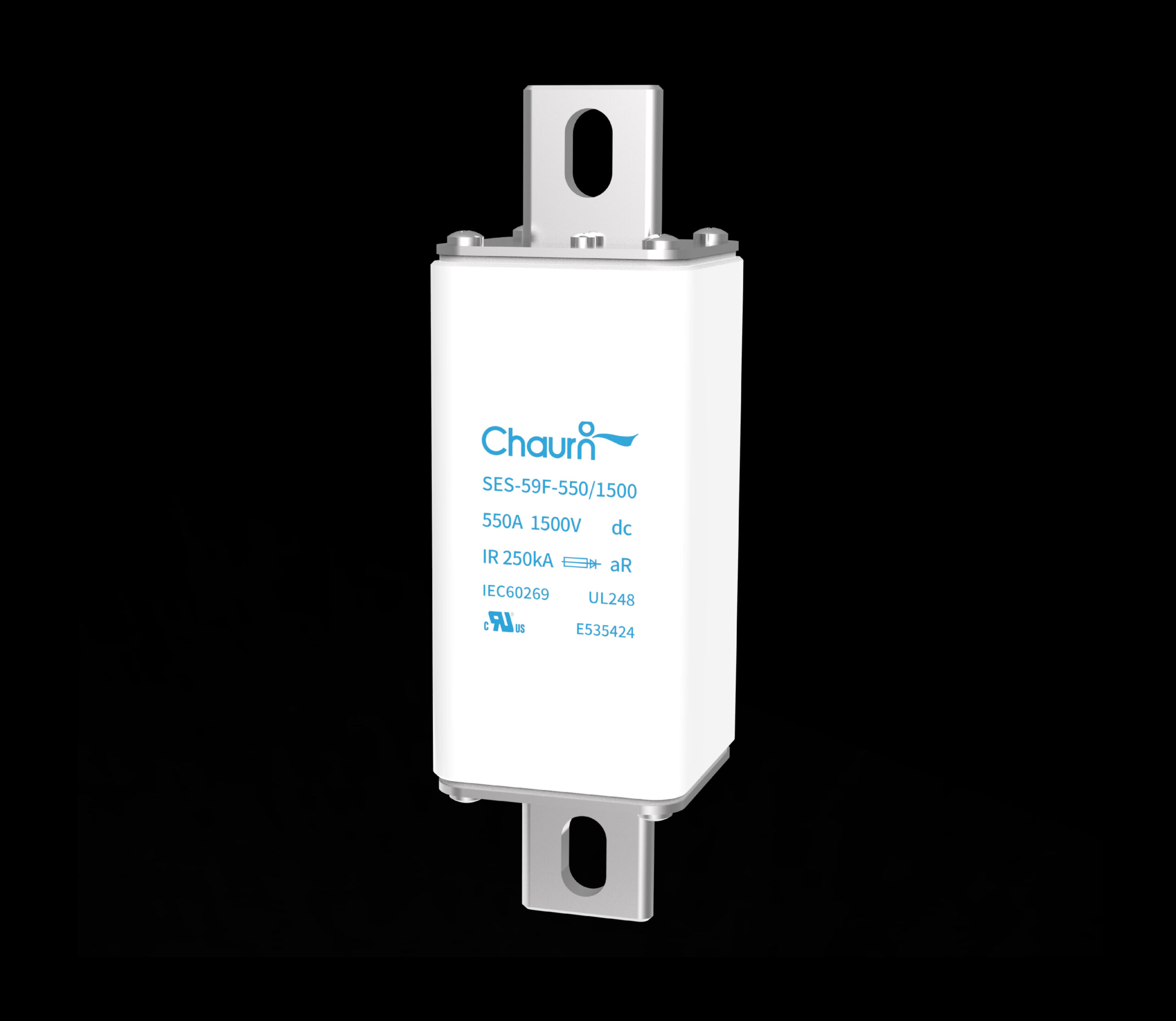

SES-59F
Basic parameters
- Rated voltage: DC1000V DC1500V
- Rated current: 250-800A
- Breaking capacity: 100kA
- Standards: UL248 IEC60269
In compliance with:
RoHS
UL

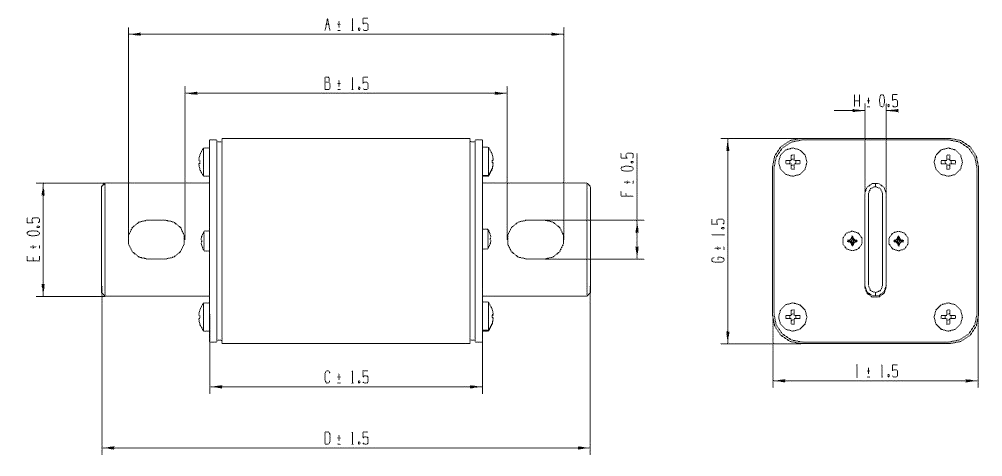

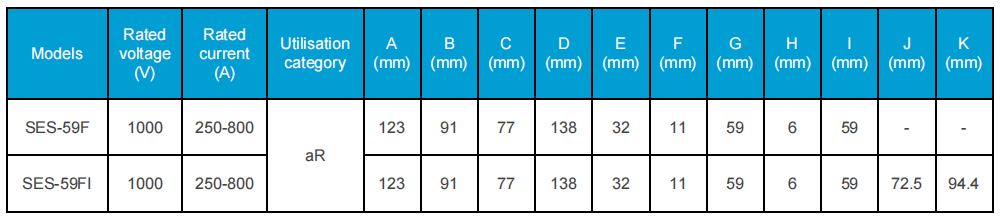

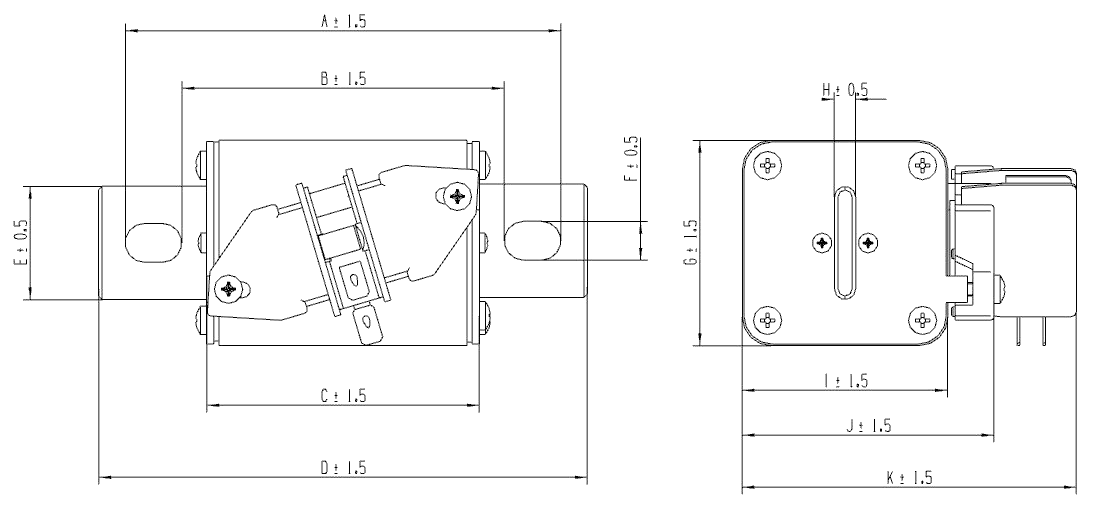

Overall dimensions (SES-59F-1000V)

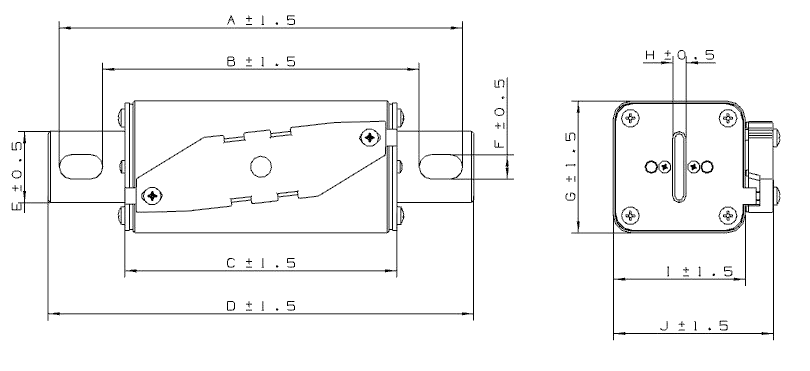

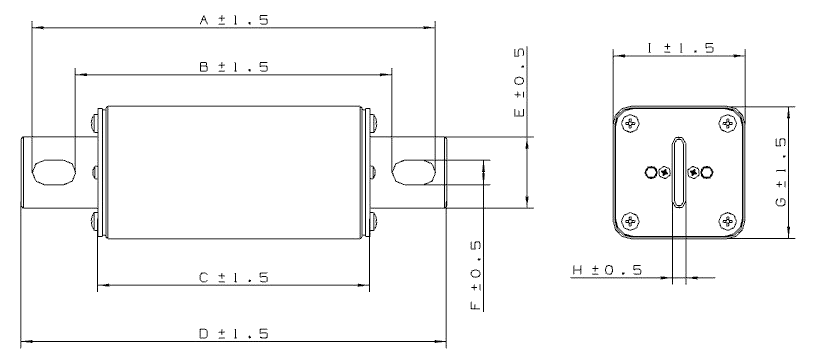

Overall dimensions (SES-59F-1500V)
