30A–3000A · Up to 2000VDC · UL, IEC, GB Compliant · Designed for Energy Storage Safety
Trusted by Industry Leaders
ESS Fuse Application Scenario
- The above products are only examples. There are many other products not listed.
- In addition to standard products, we also provide customers with customized solutions to meet specific application needs.
ESS Fuse Models & Technical Specifications
| Model | Image | Voltage | Current | Class | Standards | Breaking Capacity |
|---|---|---|---|---|---|---|
| SES-16H |  | DC250–1000V | 30–200A | gR | BS88-4, IEC60269-4，GB/T13539 | 20–25kA |
| SES-30JC |  | DC500V | 300–550A | gR | BS88-4, IEC60269-4，ISO8820，GB/T13539 | 50kA |
| SES-38JM |  | DC250V | 250–850A | gR | EN20269-4, GB/ T13539.1, GB/T 13539.4 | 50kA |
| SES-00N |  | DC500V | 160–630A | gR | UL248-13, BS88-4, IEC60269-4 | 50kA |
| SES-43F |  | DC1000V | 100–400A | gR | BS88-4, IEC60269-4，GB/T13539 | 50kA |
| SES-51F |  | DC250V | 200–700A | gR | GB/T13539.1,GB/T13539.4 | 50kA |
| SES-59F / 59FI |  | DC1000V | 250–800A | gR | UL248-13, BS88-4, IEC60269-4 | 100kA |
| SES-59F / 59FI |  | DC1500V | 100–630A | gR | UL248-13, BS88-4, IEC60269-4 | 250kA |
| SES-105F |  | AC2000V | 630–1250A | gR | UL248-13, BS88-4, IEC60269-4 | 100kA |

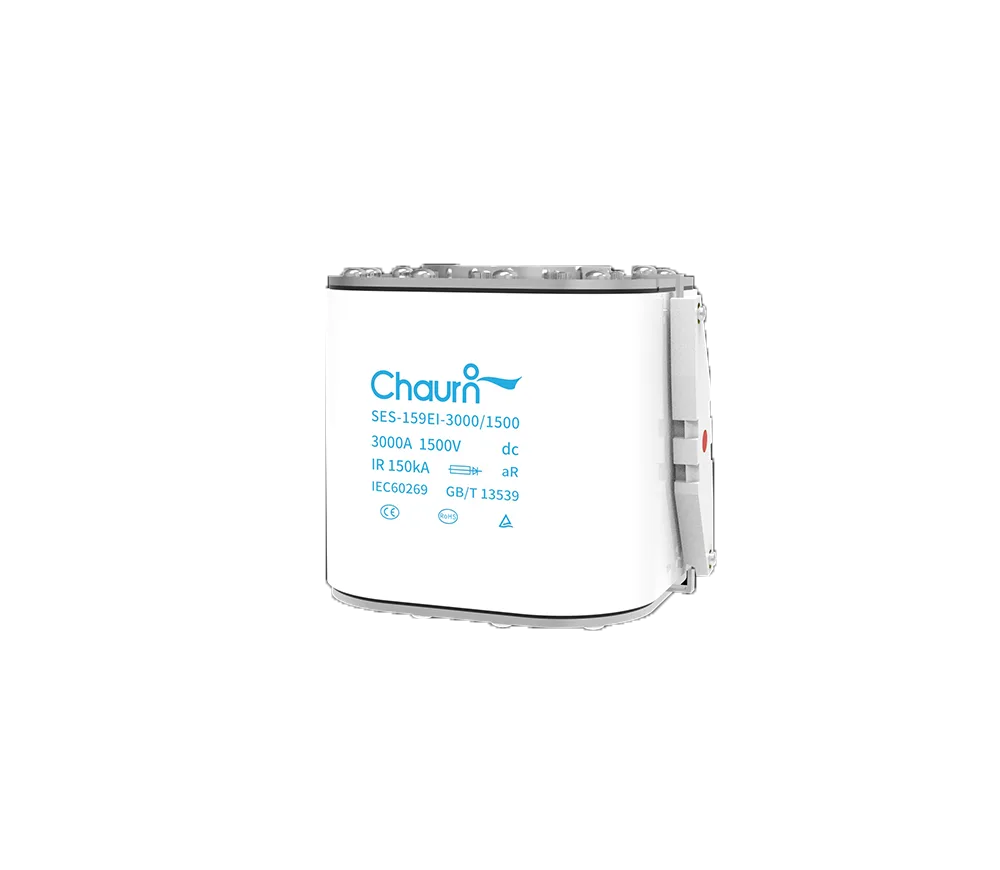

| SES-159E / 159EI |  | DC1500V | 1250–3000A | gR | BS88-4, IEC60269-4, GB/T13539 | 150kA |
| Model | Image | Rated Voltage | Rated Current | Class | Standards | Breaking Capacity |
|---|---|---|---|---|---|---|
| SEV-10H |  | DC250–1000V | 15–63A | aR | BS88-4, IEC60269-4，ISO8820，JASOD622 | 20–30kA |
| SEV-10P |  | DC500–1000V | 10–63A | gR | ISO8820，JASOD622 | 10–20kA |
| SEV-10PD |  | DC500V | 10–30A | gR | ISO8820，JASOD622 | 15kA |
| SEV-16H |  | DC250–1000V | 30–200A | gR | BS88-4, IEC60269-4，ISO8820，JASOD622 | 20–25kA |
| SEV-24J |  | DC250–500V | 100–400A | gR | ISO8820，JASOD622 | 20kA |
| SEV-30JC |  | DC500V | 175–500A | gR | BS88-4, IEC60269-4，ISO8820，JASOD622 | 20kA |
| SEV-31J |  | DC1000V | 125–200A | gR | ISO8820，JASOD622 | 20kA |
| SEV-37J |  | DC500V | 300–630A | gR | ISO8820，JASOD622 | 20kA |
| SEV-38J |  | DC750V | 250–550A | gR | UL 248-13，BS88-4, IEC60269-4，ISO8820 | 50kA |
| SEV-43F |  | DC750–1000V | 100–630A | gR | BS88-4, IEC60269-4，ISO8820，JASOD622 | 50kA |
| SEV-43EI |  | DC750–1000V | 100–630A | gR | BS88-4, IEC60269-4，ISO8820，JASOD622 | 50kA |
| SEV-50JM |  | DC1000V | 600–900A | gR | BS88-4, IEC60269-4，ISO8820，JASOD622 | 20kA |
| SEV-59F |  | DC1000V | 250–1000A | gR | BS88-4, IEC60269-4，ISO8820，JASOD622 | 100kA |
| SEV-64JM |  | DC1000V | 400–800A | gR | GB/T13539.1 GB/T13539.4 | 25kA |
| Models | Image | Rated Voltage | Rated Current | Size (mm) | Weight (g) | Trigger Method | Max. Breaking Capacity |
|---|---|---|---|---|---|---|---|

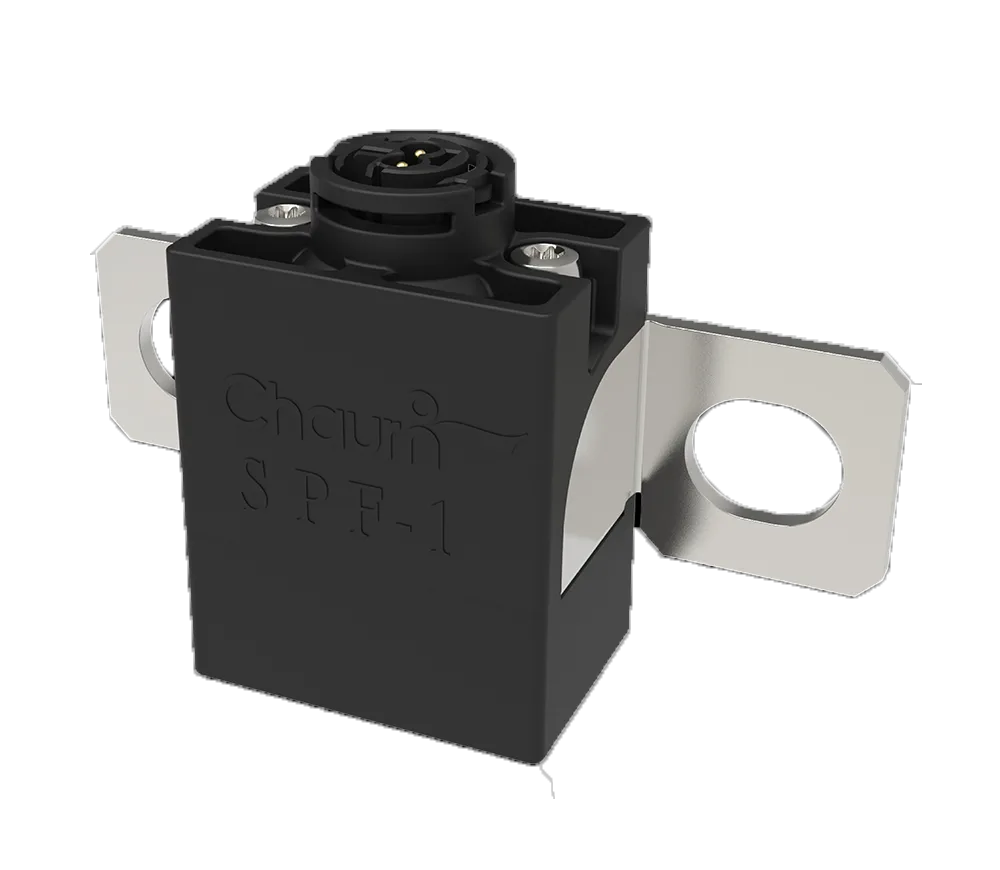

| SPF-1 |  | DC150V | 300A | 30×22×42 | ≤60 | Triggered by external signal | 32V/2kA/60μH 150V/1.2kA/60μH |
| SPF-2 |  | DC500V | 400A | 42×42×68 | ≤190 | Triggered by external signal | 400V/10kA/15μH 500V/5kA/20μH |
| SPF-2H |  | DC930V | 400A | 42×42×75 | ≤210 | Triggered by external signal | 930V/12kA/25μH 930V/3kA/140μH |
| SPF-2L |  | DC930V | 400A | 42×42×63 | ≤180 | Triggered by external signal | 930V/12kA/15μH 500V/13kA/15μH |
| SPF-3 |  | DC1000V | 400A | 50×50×79 | ≤230 | Triggered by external signal | 1000V/16kA/20μH |
| SPF-4A |  | DC1000V | 400A | 70×50×83 | ≤340 | Triggered by internal and external signal | 1000V/16kA/40μH |
Challenges When Sourcing ESS Fuses Supplier?
Does It Fit My System?
The right answer isn’t just “Yes”—It’s “Let’s make sure it does.”
We deliver custom-engineered, verified, and application-ready solutions that truly fit.
- Verified in Our CNAS Lab
- Spec-Matched to Your System
- Fast Integration Design
Will It Truly Protect?
Yes—Because we test for real faults, not just lab specs.
Your safety depends on more than a part. We deliver protection that works where failure isn’t an option.
- Critical Fault Simulation
- System-Level Protection Design
- UL, TUV, CE, RoHS Certified
Always There for Me?
Support isn’t just about promises—It’s about actions when you need them most.
From first reply to final delivery, we’re built to keep your project moving.
- Answers within 24h
- Samples in 3–5 Days
- Automated Factories, On-Time Delivery
Trusted Fuse Solutions — Built for Energy Storage Systems
Chauron Technology designs and manufactures fuses specifically engineered for energy storage systems—including battery container units, PCS interfaces, and high-voltage DC cabinets. Our ESS fuses are optimized for 250V–1500V DC platforms, delivering fast-acting response, low energy let-through, and high interrupt capacity to safeguard lithium-ion and LFP-based BESS deployments.
Founded in 2018 and led by Dr. Dai—a member of the National Fuse Standards Committee—Chauron operates two smart production sites and a CNAS-accredited test lab. Certified to UL 248, IEC 60269, and GB/T standards, we supply energy storage integrators and battery system OEMs with precision fuse solutions and responsive technical support across global markets.
Why Top Industry Brands Choose Chauron?
01
We Help Shape Industry Standards
Our founder Dr. Dai plays a key role in shaping China’s fuse standards—positioning our solutions to meet future regulatory demands and streamline your path to certification.
- SAC/TC340 Member – Standardization Administration of China / Technical Committee 340 on Fuses
- Lead Author – GB/T Standard for Battery System Fuses
- Revision Leader – GB/T Standard for EV, PV Fuses
- CNAS Certified – China National Accreditation Service for Conformity Assessment
- CE, CCC, UL, TÜV Certified
- Compliant with IATF16949, ISO 45001, ISO 14001
02
Our Laboratory is CNAS-Accredited
Performing in-house testing and certification ensures fast, reliable, and fully verified fuse solutions—eliminating the need for external validation.
03
We Build with Automation
We operate two fully automated factories—ensuring consistent quality, stable processes, and flexible production for reliable, on-time delivery at any scale.
- Fully Automated – Precision-built for consistency and scale
- Flexible Production – Quickly adjust to different orders and custom requirements
- Dual Facilities – Redundancy and capacity to support urgent or parallel projects
04
We’re Nationally Certified
Officially recognized as a National High-Tech Enterprise—backed by strong R&D and innovation capabilities to ensure long-term reliability and trusted technical solutions.
- National High-Tech – Certified by China's Ministry of Science and Technology
- Innovation-Driven – Strong in-house R&D, continuous product advancement
- Reliable Supply – Long-term stability across development and delivery
Three Steps to Cooperation
We make it simple to get started. From technical consultation to sample testing and final delivery, we guide you every step of the way.
Step 1: Technical Alignment & Sample Validation
Step 2: Trial Order & Supply Evaluation
Step 3: Mass Production & Long-Term Partnership
